Adopting

Network Service Mesh

with Meshery

Lee Calcote

Girish Ranganathan

Prem Sankar

@lcalcote

leecalcote

@ingenious_g

girishranganathan

@premsankar

gpremsankar

Lee
Calcote

Girish Ranganathan

Prem Sankar

Harshini Mohandass

layer5.io/books

Available

at

It's meshy out there

layer5.io/landscape

Service Mesh Abstractions

Service Mesh Interface (SMI)

Multi-Vendor Service Mesh Interoperation

Hamlet

Service Mesh Abstractions

+

Service Mesh Interface (SMI)

+

Multi-Vendor Service Mesh Interoperation

Hamlet

Adopter’s Dilemma

Which service mesh to use?

What's the catch? Nothing's for free.

Playground

WHICH SERVICE MESH SHOULD I USE AND HOW DO I GET STARTED?



Learn about the functionality of different service meshes and visually manipulate mesh configuration.

Performance Benchmark

WHAT OVERHEAD DOES BEING ON THE SERVICE MESH INCUR?



Benchmark the performance of your application across different service meshes and compare their overhead.

layer5.io/meshery

Service Mesh Architectures

Service Mesh Planes

Data Plane

  • Touches every packet/request in the system.
  • Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.

Ingress Gateway

Egress Gateway

A collection of pipes and proxies

Service Mesh Planes

No control plane? Not a service mesh.

Control Plane

  • Provides policy, configuration, and platform integration.
  • Takes a set of isolated stateless sidecar proxies and turns them into a service mesh.
  • Does not touch any packets/requests in the data path.

Data Plane

  • Touches every packet/request in the system.
  • Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.

Ingress Gateway

Egress Gateway

Service Mesh Planes

Control Plane

Data Plane

  • Touches every packet/request in the system.
  • Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.
  • Provides policy, configuration, and platform integration.
  • Takes a set of isolated stateless sidecar proxies and turns them into a service mesh.
  • Does not touch any packets/requests in the data path.

You need a management plane.

Ingress Gateway

Management
Plane

  • Provides monitoring, backend system integration, expanded policy and application configuration.

Egress Gateway

Pilot

Citadel

Mixer

Control Plane

Data Plane

istio-system namespace

policy check

Foo Pod

Proxy Sidecar

Service Foo

tls certs

discovery & config

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry



reports

Control flow

application traffic

Application traffic

application namespace

telemetry reports

Istio Architecture

Galley

Ingress Gateway

Egress Gateway

Control Plane

Data Plane

octa-system namespace

policy check

Foo Pod

Proxy
Sidecar

Service Foo

discovery & config

Foo Container

Bar Pod

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry



reports

Control flow

application traffic

Application traffic

application namespace

telemetry reports

Octarine Architecture

Policy
Engine

Security Engine

Visibility
Engine

+

Proxy
Sidecar

+

Control Plane

Data Plane

linkerd-system namespace

Foo Pod

Proxy Sidecar

Service Foo

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry



scarping

Control flow during request processing

application traffic

Application traffic

application namespace

telemetry scraping

Architecture

destination

Prometheus

Grafana

tap

web

CLI

proxy-api

public-api

Linkerd

proxy-injector

Configuration

Security

Telemetry

Control Plane

Data
Plane

service mesh ns

Foo Pod

Proxy Sidecar

Service Foo

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

Control flow

application traffic

http / gRPC

Application traffic

application namespace

Meshery Architecture

Ingress Gateway

Egress Gateway

Management
Plane

meshery

adapter

gRPC

kube-api

kube-system

A Mesh for Meshes

L3 (IP)

L2 (Ethernet, MPLS, etc.)

L7 (HTTP/2 etc.)

L4 (Streams - TCP / Datagrams - UDP)

service meshes

Network Service Mesh

Payloads handled by Kubernetes Services/ Istio/Service Mesh

Payloads handled by NSM

NSM - within a node

Dataplane (kernel/vswitch)

cross-connect

Application

pod

NSM

Init container

NSM Manager

VPN

Gateway

Pod

(NSE)

1. Request (connection)

7. Reply

2. Request (connection)

3. Reply

4. Create & inject interface

5. Create & inject interface

6. cross connect

Node

NSM - multi node

Dataplane (kernel/vswitch)

tunnel

Sarah's

pod

NSM

Init container

NSM Manager

VPN

Gateway

Pod

(NSE)

1. Request (connection)

11. Reply

4. Request (connection)

5. Reply

6. Create & inject interface

9. Create & inject interface

10. create tunnel

Node 1

Node 2

NSM Manager

Dataplane (kernel/vswitch)

3. Request

(connection)

7. create tunnel

8. Reply

K8S API Server

2. Select based on NetworkServiceEndpoint

NetworkService

@lcalcote

layer5.io/meshery

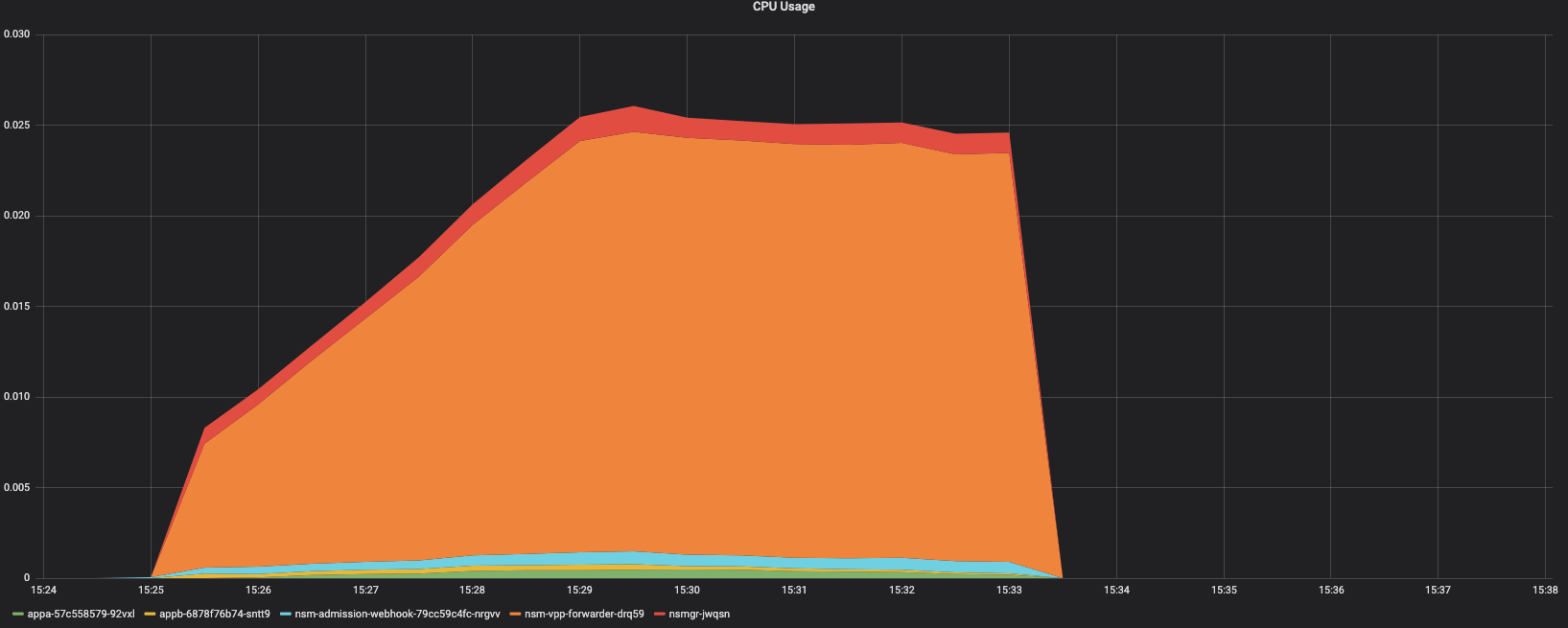

CPU Usage - Namespace

Appa Pod

Appb Pod

NSM adminission Webhook

NSM VPP forwarder

NSM Mgr

@lcalcote

layer5.io/meshery

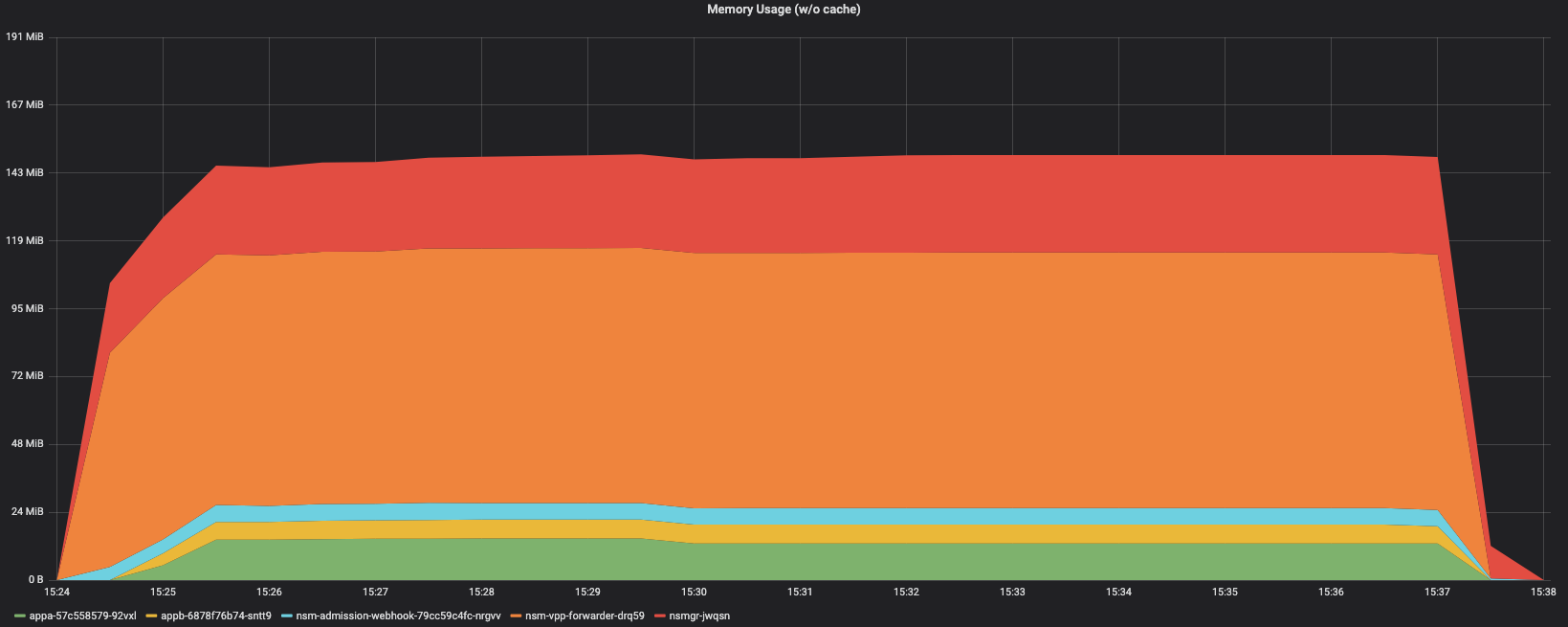

Memory Usage - Namespace

Appa Pod

Appb Pod

NSM adminission Webhook

NSM VPP forwarder

NSM Mgr

@lcalcote

layer5.io/meshery

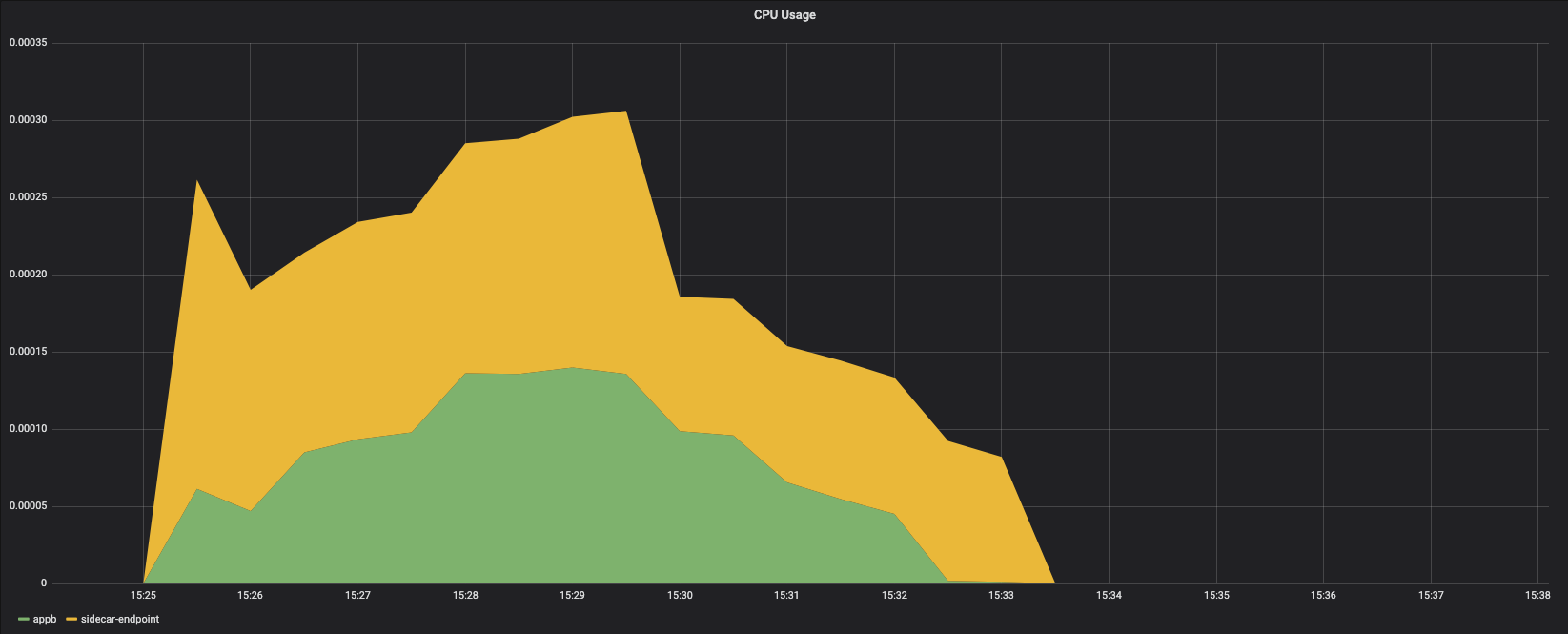

Pod CPU Usage - NSE

Appb

Sidecar

endpoint

@lcalcote

layer5.io/meshery

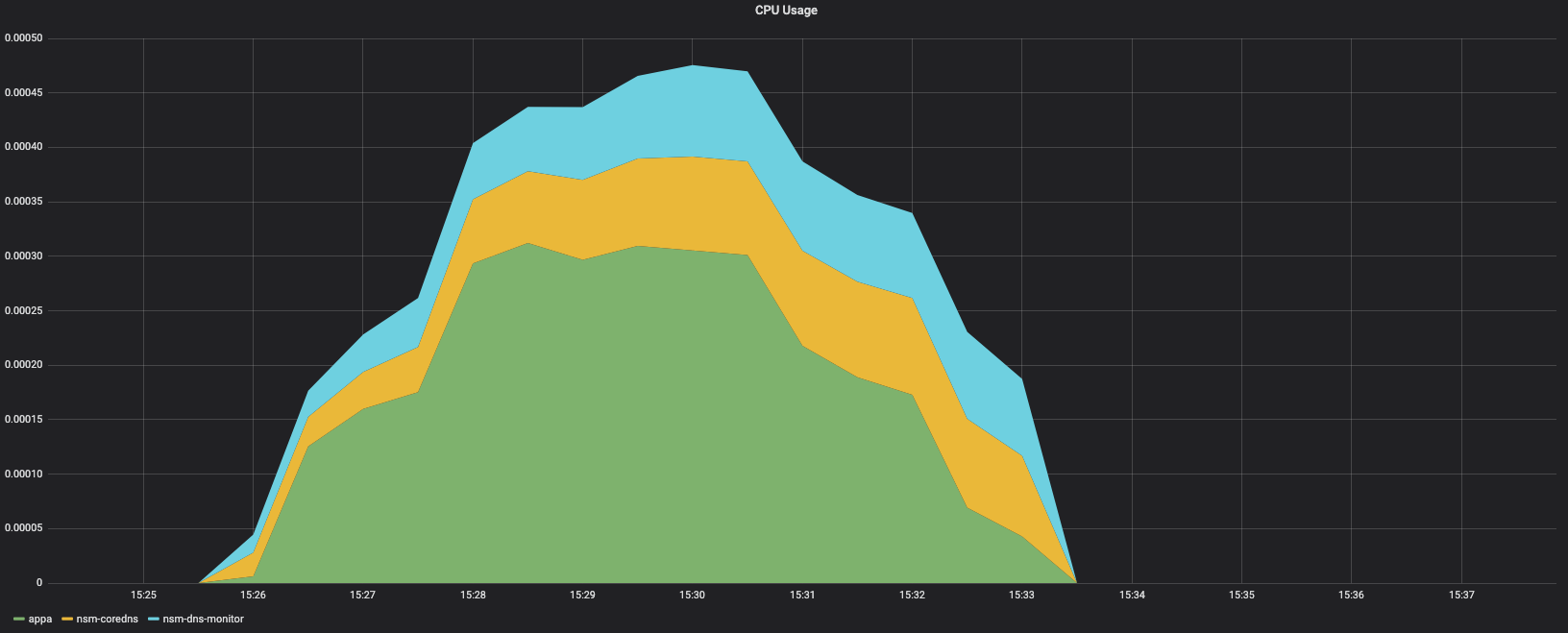

Pod CPU Usage - NSC

Appa

NSM

CoreDNS

NSM

DNS Monitor

@lcalcote

layer5.io/meshery

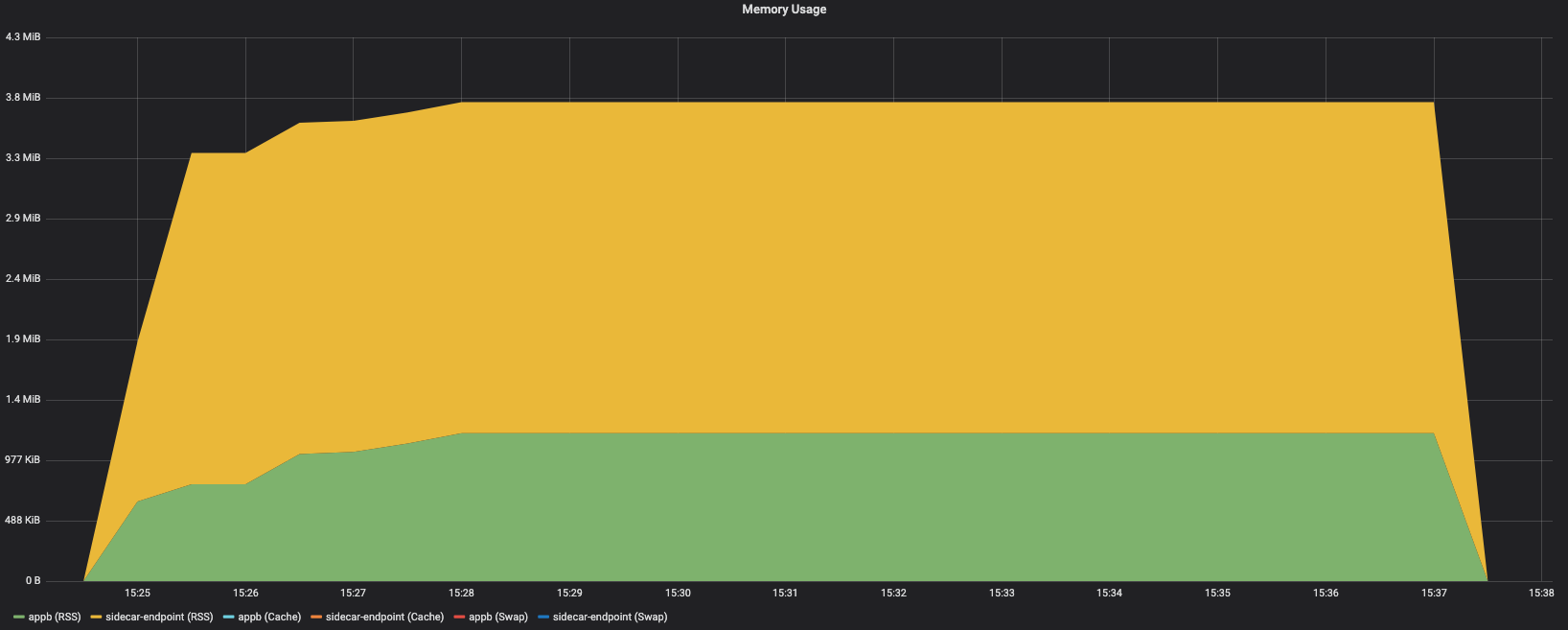

Pod Memory Usage - NSE

Appb

Sidecar

endpoint

@lcalcote

layer5.io/meshery

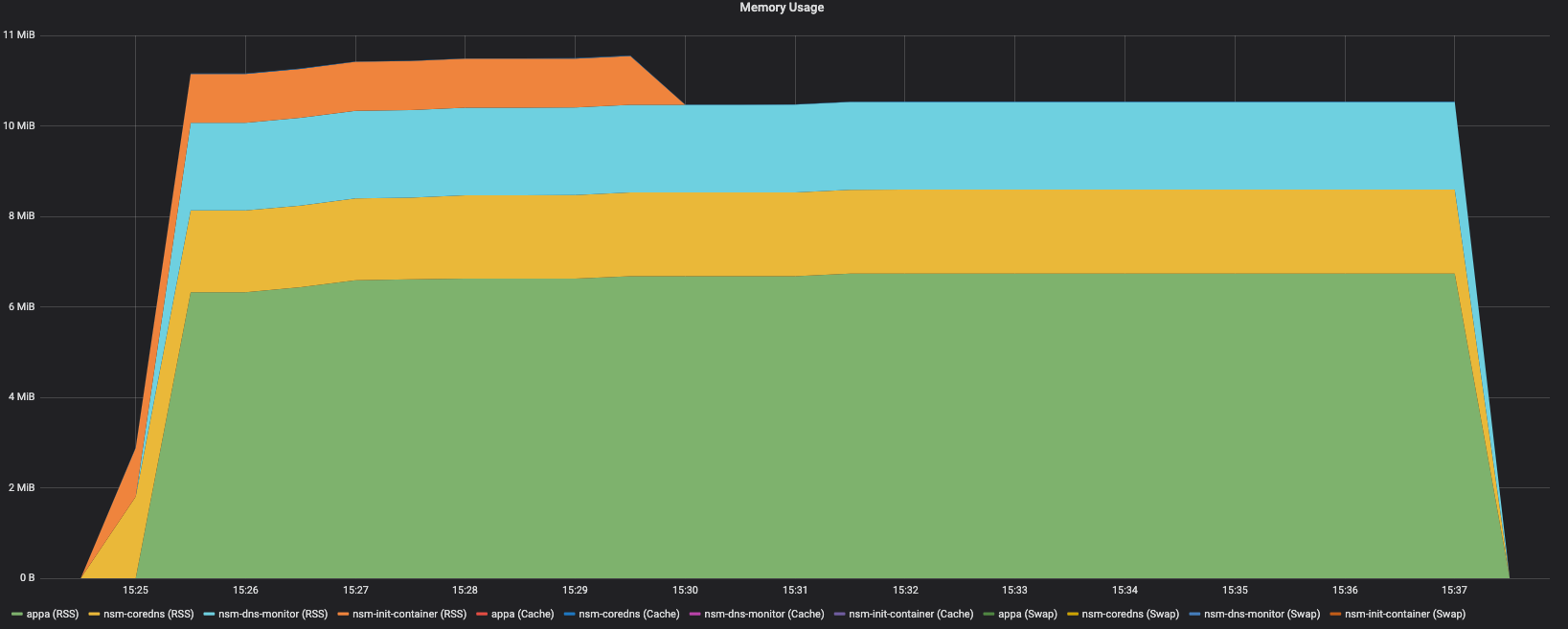

Pod Memory Usage - NSC

Appa

NSM

CoreDNS

NSM

DNS Monitor

NSM init

container

@lcalcote

layer5.io/meshery

Control Plane Memory

Istio

Linkerd

Consul

@lcalcote

layer5.io/meshery

Pod CPU Usage

Application resource consumption

@lcalcote

layer5.io/meshery

Control Plane CPU

Istio

Linkerd

Consul

Lee Calcote

cloud native and its management

layer5.io/subscribe

Girish Ranganathan

distributed systems, golang, operating at-scale,

Service Mesh Benchmark Specification

A project and vendor-neutral specification for capturing details of:

  1. Environment / Infrastructure

    • Number and size of nodes, orchestrator

  2. Service mesh and its configuration

  3. Service / application details

Bundled with test results.



github.com/layer5io/service-mesh-benchmark-spec

@lcalcote

layer5.io/meshery

Client

Edge Cache

Istio Gateway

(envoy)

Cache Generator

Collection of VMs running APIs

service mesh

Istio VirtualService

Istio VirtualService

Istio ServiceEntry

Situation:

  • existing services running on VMs (that have little to no service-to-service traffic).
  • nearly all traffic flows from client to the service and back to client.



Benefits:

  • gain granular traffic control (e.g path rewrites).
  • detailed service monitoring without immediately deploying a thousand sidecars.

Ingress

Out-of-band telemetry propagation

Application traffic

Control flow

Proxy per Node

Service A

Service A

Service A

linkerd

Node (server)

Service A

Service A

Service B

linkerd

Node (server)

Service A

Service A

Service C

linkerd

Node (server)

Advantages:

  • Less (memory) overhead.

  • Simpler distribution of configuration information.

  • primarily physical or virtual server based; good for large monolithic applications.


Disadvantages:

  • Coarse support for encryption of service-to-service communication, instead host-to-host encryption and authentication policies.

  • Blast radius of a proxy failure includes all applications on the node, which is essentially equivalent to losing the node itself.

  • Not a transparent entity, services must be aware of its existence.

Control Plane

Data Plane

Node

NSM Manager

NSM Domain

Foo Container

Node

NSM Manager

NSM Domain

Bar Container

Out-of-band telemetry propagation

Control flow during request processing

application traffic

Application traffic

application namespace

telemetry scraping

Architecture

destination

Prometheus

Grafana

NSMe

domain

client

proxy-api

public-api

Network
Service
Mesh

Kubernetes API Server

layer5.io/books

Advantages:

  • Good starting point for building a brand-new microservices architecture or for migrating from a monolith.

Disadvantages:

  • When the number of services increase, it becomes difficult to manage.

Router "Mesh"

Fabric Model

Advantages:

  • Granular encryption of service-to-service communication.

  • Can be gradually added to an existing cluster without central coordination.

Disadvantages:

  • Lack of central coordination. Difficult to scale operationally.

Ingress or Edge Proxy

Advantages:

  • Works with existing services that can be broken down over time.

Disadvantages:

  • Is missing the benefits of service-to-service visibility and control.

NSM - multi node

NSMgr 2

Node 2

Cluster 2

NSMgr 1

Node 1

Cluster 1

eNSM 1

eNSM 2

VIM

VM

VM

VM

A project and vendor-neutral specification for capturing details of:

  1. Environment / Infrastructure

    • Number and size of nodes, orchestrator

  2. Service mesh and its configuration

  3. Service / application details

Bundled with test results.



Control Plane

Data Plane

Foo Pod

Proxy Sidecar

Service Foo

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry



scarping

Control flow during request processing

application traffic

Application traffic

application namespace

telemetry scraping

Architecture

Network Service Registry

Prometheus

Network Service Endpoint (NSE)

domain

client

public-api

Network
Service
Mesh

Network Service Client (NSC)

@lcalcote

layer5.io/meshery

Control Plane CPU

Istio

Linkerd

Consul

NEEDS UPDATED with NSM
