Characterizing and Contrasting Container Orchestrators





Lee Calcote

http://calcotestudios.com/ccco

OpenStack Summit Container Day, April 2016

Lee Calcote

clouds, containers, infrastructure, applications

 and their management

linkedin.com/in/leecalcote

@lcalcote

blog.gingergeek.com

lee@calcotestudios.com

[k uh   n- tey -ner]

[ awr -k uh -streyt-or]

Definition:

Fleet

Nomad

Swarm
Kubernetes
Mesos+Marathon

(Stay tuned for updates to presentation)

One size does not fit all.

A strict apples-to-apples comparison is inappropriate and not the objective, hence  characterizing  and  contrasting.

Categorically Speaking

  • Genesis & Purpose

  • Support & Momentum

  • Host & Service Discovery

  • Scheduling

  • Modularity & Extensibility

  • Updates & Maintenance

  • Health Monitoring

  • Networking & Load-Balancing

  • High Availability & Scale

Hypervisor
Manager
Elements

  • Compute

  • Network

  • Storage

Container
Orchestrator
Elements

  • Host (Node)
  • Container
  • Service
  • Volume
  • Applications

Core

Capabilities

  • Scheduling

  • Cluster Management

    • Host Discovery

    • Host Health Monitoring

  • Orchestrator Updates and Host Maintenance

  • Service Discovery

  • Networking and Load-Balancing

Additional

Key Capabilities

  • Application Health Monitoring

  • Application Deployments

  • Application Performance Monitoring

Docker Swarm

Genesis & Purpose

  • Swarm is simple and easy to setup.

  • An imperative system, Swarm is responsible for the clustering and scheduling aspects of orchestration.

  • Swarm’s architecture is not complex as those of Kubernetes and Mesos
    • has Manager(s) and Agent(s)

  • Written in Golang, Swarm is lightweight, modular, portable, and extensible



Support & Momentum

  • ~3,000 commits by 12 core maintainers (130 contributors in all), and for Docker Compose, the numbers are approximately the same

  • Swarm leverages the same API for Docker engine which over 23,000 commits and 1,350 contributors
    ​
  • ~250 Docker meetups worldwide


  • Announced as production-ready 5 months ago (Nov 2015)

image: digital trends

Host & Service Discovery

Host Discovery

  • used in the formation of clusters by the Manager to discover for Nodes (hosts).



Service Discovery

  • Swarm has a concept of services through network aliases and round robin DNS



image: iStock

Scheduling

  • Swarm’s scheduler is pluggable

  • Swarm scheduling is a combination of strategies and filters/constraint:

    • Strategies

      • Random

      • Binpack

      • Spread*

    • Filters

      • container constraints (affinity, dependency, port) are defined as environment variables in the specification file

      • node constraints (health, constraint) must be specified when starting the docker daemon and define which nodes a container may be scheduled on.

image: pickywallpapers

Updates & Maintenance

Nodes

  • Manual swarm manager and agent updates


Applications

  • No facilities for updating application



image: 123RF

Modularity & Extensibility

Ability to remove batteries is a strength for Swarm:

  • Pluggable scheduler
  • Pluggable network driver
  • Pluggable distributed K/V store
  • Docker container engine runtime-only

image:  Alan Chia

Health Monitoring

Nodes

  • Swarm monitors the availability and resource usage of nodes within the cluster



Applications

  • No facilities for monitoring applications
  • Use third-party software

Networking & Load-Balancing

  • Docker Swarm is fully compatible with Docker’s networking

  • Docker multi-host networking (requires a K/V store) provides for user-defined overlay networks that are micro-segmentable

    • uses a gossip protocol for quick convergence of neighbor table

    • facilitates container name resolution via embedded DNS server (previously via etc/hosts)

  • You may bring your own network driver

  • Load-balancing is new in 1.11.0

    • - no documentation available

High Availability & Scale

  • Managers may be deployed in a highly-available configuration (out of experimental in 1.11.0)
    • Active/Standby - ​an active manager and replicas configuration
  • Rescheduling upon node failure (experimental in 1.11.0) and simple.

  • Rebalancing is not available

    • Rescheduled containers lose access to volumes mounted on the former host.

      • use volume plugins like Flocker to avoid this

  • Does not support multiple failure isolation regions or federation (although, with caveats, this is possible).



Scaling swarm to 1,000 AWS  nodes and 50,000 containers

  • Suitable for orchestrating a combination of infrastructure containers

    • Less built-in functionality for application containers

  • Swarm is a young project and lacks advanced features.

  • High Availability out of experimental as of latest release (1.11.0)

  • Rescheduling is experimental in 1.11.0 (no Rebalancing, yet)

  • Load-balancing in 1.11.0? Swarm needs to be used with third-party software.

  • Only schedules Docker containers, not containers using other specifications.

  • While dependency and affinity filters are available, Swarm does not provide the ability to enforce scheduling of two containers onto the same host or not at all.

    • Current filters do not facilitate sidecar pattern. No “pod” concept.

  • Swarm works. Swarm is simple and easy to deploy.

    • ​If you already know  Docker CLI, using Swarm is straight-forward

  • facilitates earlier stages of adoption by organizations viewing containers as faster VMs

    • Less built-in functionality for applications

  • Swarm is easy to extend, if can already know Docker APIs, you can customize Swarm

  • Highly modular:

    • Pluggable scheduler

    • Pluggable K/V store for both node and multi-host networking

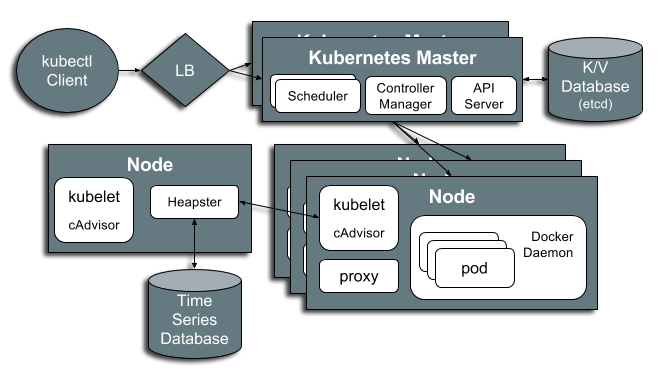

Kubernetes

Genesis & Purpose

  • an opinionated framework for building distributed systems
    • or as its tagline states "an open source system for automating deployment, scaling, and operations of applications."
  • Written in Golang, Kubernetes is lightweight, modular, portable, and extensible

  • considered a third generation container orchestrator led by Google, Red Hat and others.

    • bakes in load-balancing, scale, volumes, deployments and secret management among other features.

  • Declaratively, opinionated with many key features included



Support & Momentum

  • Kubernetes is young (about two years old)
    • Announced as production-ready 10 months ago (July 2015)
  • Project currently has over 1,000 commits per month (~23,000 total)
    • made by about 100 (650 total)  Kubernauts (Kubernetes enthusiasts).
    • ~5,000 commits made in the latest release - 1.2.
  • Under the governance of the Cloud Native Computing Foundation
  • Robust set of documentation and ~90 meetups

Host & Service Discovery

Host Discovery

  • by default, the node agent (kubelet) is configured to register itself with the master (API server)
    • automating the joining of new hosts to the cluster.

Service Discovery

Two primary modes of finding a Service

  • environment variables​
    • environment variables are used as a simple way of providing compatibility with Docker links-style networking
  • DNS
    • when enabled is deployed as a cluster add-on

image: iStock

Scheduling

  • By default, scheduling is handled by kube-scheduler.
  • Pluggable
  • Selection criteria used by kube-scheduler to identify the best-fit node is defined by policy:

    • Predicates (node resources and characteristics):

      • ​PodFitPorts , PodFitsResources, NoDiskConflict , MatchNodeSelector, HostName , ServiceAffinit, LabelsPresence

    • Priorities (weighted strategies used to identify “best fit” node):

      • ​LeastRequestedPriority, BalancedResourceAllocation, ServiceSpreadingPriority, ​EqualPriority

Modularity &

         Extensibility

  • One of Kubernetes strengths its pluggable architecture
  • Choice of:
    • database for service discovery or network driver
    • container runtime
      • users may choose to run Docker with Rocket containers
  • ​Cluster add-ons
    • optional system components that implement a cluster feature (e.g. DNS, logging, etc.)
    • shipped with the Kubernetes binaries and are considered an inherent part of the Kubernetes clusters



Updates & Maintenance

Applications

  • Deployment objects automate deploying and rolling updating applications.​

Kubernetes Components

  • Upgrading the Kubernetes components and hosts is done via shell script

  • Host maintenance - mark the node as unschedulable.
    • existing pods are not vacated from the node
    • prevents new pods from being scheduled on the node

image: 123RF

Health Monitoring

Nodes

  • Failures - actively monitors the health of nodes within the cluster
    • via Node Controller
  • Resources - usage monitoring leverages a combination of open source components:

    • cAdvisor, Heapster, InfluxDB, Grafana

Applications

  • three types of user-defined application health-checks and uses the Kubelet agent as the the health check monitor

    • ​HTTP Health Checks, Container Exec, TCP Socket

​Cluster-level Logging

  • collect logs which persist beyond the lifetime of the pod’s container images or the lifetime of the pod or even cluster

    • ​standard output and standard error output of each container can be ingested using a Fluentd agent running on each node

Networking & Load-Balancing

…enter the Pod

  • atomic unit of scheduling
  • flat networking with each pod receiving an IP address
  • no NAT required, port conflicts localized
  • intra-pod communication via localhost​

Load-Balancing

  • Services provide inherent load-balancing via kube-proxy:
    • runs on each node of a Kubernetes cluster
    • reflects services as defined in the Kubernetes API
    • supports simple TCP/UDP forwarding and round-robin and Docker-links-based service IP:PORT mapping.

High Availability & Scale

  • Each master component may be deployed in a highly-available configuration.
    • ​Active/Standby configuration

  • ​In terms of scale, v1.2 brings support for 1,000 node clusters and a step toward fully-federated clusters (Ubernetes)

  • Application-level auto-scaling is supported within Kubernetes via Replication Controllers
  • Only runs cloud-native applications ​

  • ​ For those familiar with Docker-only, Kubernetes requires understanding of new concepts

    • Powerful frameworks with more moving pieces beget complicated cluster deployment and management.

  • Lightweight graphical user interface

  • Does not provide as sophisticated techniques for resource utilization as Mesos





  • Kubernetes can schedule docker or rkt containers
  • Inherently opinionated with functionality built-in.
    • no third-party software needed to run services, load-balancing,
    • builds in many application-level concepts and services (secrets, petsets, jobsets, daemonsets, rolling updates, etc.)
  • ​Kubernetes arguably moving the quickest
  • Relatively thorough project documentation
  • Multi-master, Robust logging & metrics aggregation



Mesos

+

Marathon

Genesis & Purpose

  • Mesos is a distributed systems kernel

    • stitches together many different machines into a logical computer

  • Mesos has been around the longest (launched in 2009)

    • and is arguably the most stable, with highest (proven) scale currently

  • Mess is written in C++
    • with Java, Python and C++ APIs

  • Frameworks

    • Marathon is one of a number of frameworks (Chronos and Aurora other examples) that may be run on top of Mesos

    • Frameworks have a scheduler and executor. Schedulers get resource offers. Executors run tasks.

    • Marathon is written in Scala

Support & Momentum

  • MesosCon 2015 in Seattle had 700 attendees
    • up from 262 attendees in 2014
  • 78 contributors in the last year



  • Under the governance of Apache Foundation
  • Used by Twitter, AirBnb, eBay, Apple, Cisco, Yodle

Host &
      Service Discovery

  • Mesos-DNS generates an SRV record for each Mesos task

    • including Marathon application instances

  • Marathon will ensure that all dynamically assigned service ports are unique

  • Mesos-DNS is particularly useful when:

    • apps are launched through multiple frameworks (not just Marathon)

    • you are using an IP-per-container solution like Project Calico

    • you use random host port assignments in Marathon

image: iStock

Scheduling

  • Two level scheduler
    • First level scheduling happens at mesos master based on allocation policy , which decides which framework get resources
    • Second level scheduling happens at Framework scheduler , which decides what tasks to execute.
  • Provide reservations and over subscriptions

Modularity & Extensibility

Frameworks

  • multiple available

  • may run multiple frameworks

Modules

  • has three types of Modules

    • Replacement, Hook, Anonymous

Updates &

Maintenance

Nodes

- Mesos has maintenance mode



Applications

  • Marathon can be instructed to deploy containers based on that component using a blue/green strategy
    • where old and new versions co-exist for a time.

image: 123RF

Health Monitoring

Nodes

  • Master tracks a set of statistics and metrics to monitor resource usage
    • Counters and Gauges

​

Applications

  • support for health checks (HTTP and TCP)
  • an event stream that can be integrated with load-balancers or for analyzing metrics

Networking & Load-Balancing

Networking

  • An IP per Container

    • No longer share the node's IP

  • ​Helps remove port conflicts

  • Enables 3rd party network drivers

Load-Balancing

  • Marathon offers two TCP/HTTP proxy.

    • A simple shell script and a more complex one called marathon-lb that has more features.

    • Pluggable (e.g. Traefik for load-balancing)

High Availability & Scale

  • A strength of Mesos’s architecture
    • requires masters to form a quorum using ZooKeeper (point of failure)
    • only one Active (Leader) Marathon master at-a-time



  • Scale is a strong suit for Mesos. Used at Twitter, AirBnB... TBD for Marathon



  • Great at asynchronous jobs. High availability built-in.

    • Referred to as the “golden standard” by Solomon Hykes, Docker CTO.

  • Universal Containerizer

    • abstract away from Docker Engine, (runc, appc)

  • Can run multiple frameworks, including Kubernetes and Swarm.

  • Only of the container orchestrators that supports multi-tenancy

  • Good for Big Data house and job-oriented or task-oriented workloads.​

    • Good for mixed workloads and with data-locality policies

  • Powerful and scalable, Battle-tested

    • ​Good for multiple large things you need to do 10,000+ node cluster system

  • ​Marathon UI is young, but promising

  • Still needs 3rd party tools

  • Marathon interface could be more Docker friendly (hard to get at volumes and registry)

  • May need a dedicated infrastructure IT team

    • ​an overly complex  solution  for small deployments

Summary

A high-level perspective of the container orchestrator spectrum .

Lee Calcote

linkedin.com/in/leecalcote

@lcalcote

blog.gingergeek.com

lee@calcotestudios.com

Thank you. Questions?
